Upgrade SAN-OS to NX-OS

I recently purchased a pair of MDS 9216i switches for my CCIE Data Center studies, as they will suit me for the majority of my storage studies (minus FCoE). The MDS’s shipped with old code, SAN-OS 3.0, and I needed them upgraded to at least NX-OS per the blueprint. For a lab with disruptive capabilities, this is super easy to do.

I quickly found these resources, which walked me through the upgrade:

http://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/4_1/upgrade/guide/upgrade.html
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/nx-os/release/notes/19964_13.html#wp350532

First, a quick show version to see what I’m currently running:

MDS1# sh ver
Cisco Storage Area Networking Operating System (SAN-OS) Software
TAC support: http://www.cisco.com/tac
Copyright (c) 2002-2006, Cisco Systems, Inc. All rights reserved.
The copyrights to certain works contained herein are owned by
other third parties and are used and distributed under license.
Some parts of this software are covered under the GNU Public
License. A copy of the license is available at
http://www.gnu.org/licenses/gpl.html.

Software
  BIOS:      version 1.1.0
  loader:    version 1.2(2)
  kickstart: version 3.0(2a)
  system:    version 3.0(2a)

  BIOS compile time:       10/24/03
  kickstart image file is: bootflash:/m9200-ek9-kickstart-mz.3.0.2a.bin
  kickstart compile time:  5/4/2006 21:00:00 [06/30/2006 18:17:39]
  system image file is:    bootflash:/m9200-ek9-mz.3.0.2a.bin
  system compile time:     5/4/2006 21:00:00 [06/30/2006 18:36:14]


Hardware
  cisco MDS 9216i ("2x1GE IPS, 14x1/2Gbps FC/Supervisor")
  Intel(R) Pentium(R) III CPU with 963836 kB of memory.
  Processor Board ID JAE1138XC0F

  bootflash:  250368 kB
  slot0:           0 kB

MDS1   kernel uptime is 21 days 5 hours 5 minute(s) 52 second(s)

  Last reset
    Reason: Unknown
    System version: 3.0(2a)
    Service:

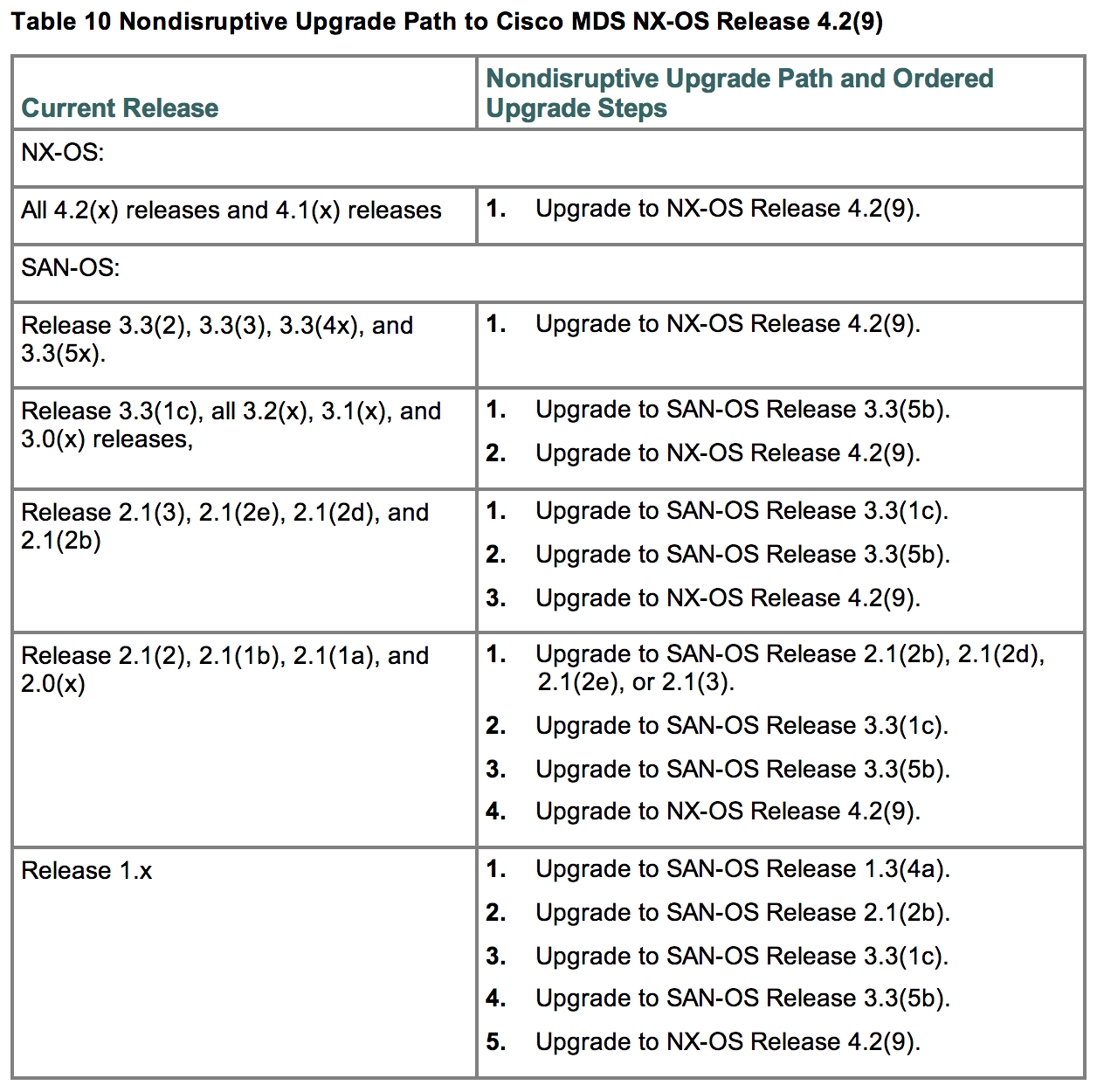

I’m running 3.0.2a, so according to the table below, I’ll first need to upgrade to SAN-OS 3.3(5b) before upgrading to NX-OS:

Table-10

Also, important to know which modules you’re running, and if they’re supported.  Nothing fancy here, just the basics:

MDS1# show module
Mod  Ports  Module-Type                      Model              Status
---  -----  -------------------------------- ------------------ ------------
1    16     2x1GE IPS, 14x1/2Gbps FC/Superv  DS-X9216I-K9       active *

Mod  Sw           Hw      World-Wide-Name(s) (WWN)
---  -----------  ------  --------------------------------------------------
1    3.0(2a)      8.0     20:01:00:0d:ec:54:63:80 to 20:10:00:0d:ec:54:63:80


Mod  MAC-Address(es)                         Serial-Num
---  --------------------------------------  ----------
1    00-17-94-ee-0a-c8 to 00-17-94-ee-0a-ce  JAE1138XC0F

* this terminal session

Head over to Cisco.com and download the necessary files.  In my case:

SAN-OS 3.3(5b) System Software and Kick Start
m9200-ek9-mz.3.3.5b.bin
m9200-ek9-kickstart-mz.3.3.5b.bin

NX-OS 4.2(9) System Software and Kick Start
m9200-ek9-mz.4.2.9.bin
m9200-ek9-kickstart-mz.4.2.9.bin

Take a look at the bootflash to see if you have enough room for the new files:

MDS1# dir bootflash:
      12288     Jan 01 00:02:35 1980  lost+found/
   14655488     Jan 01 00:08:09 1980  m9200-ek9-kickstart-mz.3.0.2a.bin
   66678928     Jan 01 00:17:17 1980  m9200-ek9-mz.3.0.2a.bin

Usage for bootflash://sup-local
   95489024 bytes used
   90596352 bytes free
  186085376 bytes total

I don’t, so I’m just going to clear out the old images:

MDS1# del bootflash:m9200-ek9-kickstart-mz.3.0.2a.bin
Note: Boot variable kickstart is set to bootflash:/m9200-ek9-kickstart-mz.3.0.2a.bin
MDS1# del bootflash:m9200-ek9-mz.3.0.2a.bin
Note: Boot variable system is set to bootflash:/m9200-ek9-mz.3.0.2a.bin

Now copy over your new files:

MDS1# copy tftp://10.160.154.11/m9200-ek9-kickstart-mz.3.3.5b.bin bootflash:m9200-ek9-kickstart-mz.3.3.5b.bin
Trying to connect to tftp server......
|
 TFTP get operation was successful
MDS1# copy tftp://10.160.154.11/m9200-ek9-mz.3.3.5b.bin bootflash:m9200-ek9-mz.3.3.5b.bin
Trying to connect to tftp server......

 TFTP get operation was successful

Check the bootflash

MDS1# dir bootflash:
      12288     Jan 01 00:02:35 1980  lost+found/
   14770176     Aug 13 02:17:47 2014  m9200-ek9-kickstart-mz.3.3.5b.bin
   77091516     Aug 13 02:19:20 2014  m9200-ek9-mz.3.3.5b.bin

Usage for bootflash://sup-local
  106059776 bytes used
   80025600 bytes free
  186085376 bytes total

Perform the upgrade install

MDS1# install all system bootflash:m9200-ek9-mz.3.3.5b.bin kickstart bootflash:m9200-ek9-kickstart-mz.3.3.5b.bin

Verifying image bootflash:/m9200-ek9-kickstart-mz.3.3.5b.bin for boot variable "kickstart".
[####################] 100% -- SUCCESS

Verifying image bootflash:/m9200-ek9-mz.3.3.5b.bin for boot variable "system".
[####################] 100% -- SUCCESS

Extracting "system" version from image bootflash:/m9200-ek9-mz.3.3.5b.bin.
[####################] 100% -- SUCCESS

Extracting "kickstart" version from image bootflash:/m9200-ek9-kickstart-mz.3.3.5b.bin.
[####################] 100% -- SUCCESS

Extracting "bios" version from image bootflash:/m9200-ek9-mz.3.3.5b.bin.
[####################] 100% -- SUCCESS

Extracting "loader" version from image bootflash:/m9200-ek9-kickstart-mz.3.3.5b.bin.
[####################] 100% -- SUCCESS



Compatibility check is done:
Module  bootable          Impact  Install-type  Reason
------  --------  --------------  ------------  ------
     1       yes      disruptive         reset  Reset due to single supervisor



Images will be upgraded according to following table:
Module       Image       Running-Version           New-Version  Upg-Required
------  ----------  --------------------  --------------------  ------------
     1      system               3.0(2a)               3.3(5b)           yes
     1   kickstart               3.0(2a)               3.3(5b)           yes
     1        bios      v1.1.0(10/24/03)      v1.1.0(10/24/03)            no
     1      loader                1.2(2)                1.2(2)            no

Do you want to continue with the installation (y/n)?  [n] y

Install is in progress, please wait.

Setting boot variables.
[####################] 100% -- SUCCESS

Performing configuration copy.
[####################] 100% -- SUCCESS

Rebooting the switch to finish the upgrade.

System is back online, verify the version:

MDS1# show ver
Cisco Storage Area Networking Operating System (SAN-OS) Software
TAC support: http://www.cisco.com/tac
Copyright (c) 2002-2011, Cisco Systems, Inc. All rights reserved.
The copyrights to certain works contained herein are owned by
other third parties and are used and distributed under license.
Some parts of this software may be covered under the GNU Public
License or the GNU Lesser General Public License. A copy of
each such license is available at
http://www.gnu.org/licenses/gpl.html and
http://www.gnu.org/licenses/lgpl.html

Software
  BIOS:      version 1.1.0
  loader:    version 1.2(2)
  kickstart: version 3.3(5b)
  system:    version 3.3(5b)

  BIOS compile time:       10/24/03
  kickstart image file is: bootflash:/m9200-ek9-kickstart-mz.3.3.5b.bin
  kickstart compile time:  4/14/2011 19:00:00 [04/28/2011 06:00:35]
  system image file is:    bootflash:/m9200-ek9-mz.3.3.5b.bin
  system compile time:     4/14/2011 19:00:00 [04/28/2011 06:16:53]


Hardware
  cisco MDS 9216i ("2x1GE IPS, 14x1/2Gbps FC/Supervisor")
  Intel(R) Pentium(R) III CPU with 963828 kB of memory.
  Processor Board ID JAE1138XC0F

  bootflash:  250368 kB
  slot0:           0 kB

MDS1   kernel uptime is 0 days 0 hour 2 minute(s) 21 second(s)

  Last reset at 728674 usecs after Wed Aug 13 02:21:33 2014
    Reason: Reset by installer
    System version: 3.0(2a)
    Service:

Verify the bootflash

MDS1# dir bootflash:
      12288     Jan 01 00:02:35 1980  lost+found/
   14770176     Aug 13 02:17:47 2014  m9200-ek9-kickstart-mz.3.3.5b.bin
   77091516     Aug 13 02:19:20 2014  m9200-ek9-mz.3.3.5b.bin

Usage for bootflash://sup-local
  106059776 bytes used
   80025600 bytes free
  186085376 bytes total

Now perform the same procedure again for the NX-OS upgrade.

Make room for the new image files

MDS1# del bootflash:m9200-ek9-kickstart-mz.3.3.5b.bin
Note: Boot variable kickstart is set to bootflash:/m9200-ek9-kickstart-mz.3.3.5b.bin
MDS1# del bootflash:m9200-ek9-mz.3.3.5b.bin
Note: Boot variable system is set to bootflash:/m9200-ek9-mz.3.3.5b.bin

Copy over the NX-OS images

MDS1# copy tftp://10.160.154.11/m9200-ek9-mz.4.2.9.bin bootflash:m9200-ek9-mz.4.2.9.bin
Trying to connect to tftp server......
-
 TFTP get operation was successful
MDS1# copy tftp://10.160.154.11/m9200-ek9-kickstart-mz.4.2.9.bin bootflash:m9200-ek9-kickstart-mz.4.2.9.bin
Trying to connect to tftp server......
/
 TFTP get operation was successful

Check the bootflash

MDS1# dir bootflash:
      12288     Jan 01 00:02:35 1980  lost+found/
   20632576     Aug 13 02:35:49 2014  m9200-ek9-kickstart-mz.4.2.9.bin
  103070836     Aug 13 02:35:22 2014  m9200-ek9-mz.4.2.9.bin

Usage for bootflash://sup-local
  138025984 bytes used
   48059392 bytes free
  186085376 bytes total

Perform the upgrade install

MDS1# install all system bootflash:m9200-ek9-mz.4.2.9.bin kickstart bootflash:m9200-ek9-kickstart-mz.4.2.9.bin

Verifying image bootflash:/m9200-ek9-kickstart-mz.4.2.9.bin for boot variable "kickstart".
[####################] 100% -- SUCCESS

Verifying image bootflash:/m9200-ek9-mz.4.2.9.bin for boot variable "system".
[####################] 100% -- SUCCESS

Extracting "system" version from image bootflash:/m9200-ek9-mz.4.2.9.bin.
[####################] 100% -- SUCCESS

Extracting "kickstart" version from image bootflash:/m9200-ek9-kickstart-mz.4.2.9.bin.
[####################] 100% -- SUCCESS

Extracting "bios" version from image bootflash:/m9200-ek9-mz.4.2.9.bin.
[####################] 100% -- SUCCESS

Extracting "loader" version from image bootflash:/m9200-ek9-kickstart-mz.4.2.9.bin.
[####################] 100% -- SUCCESS

Performing Compact Flash and TCAM sanity test.
[####################] 100% -- SUCCESS



Compatibility check is done:
Module  bootable          Impact  Install-type  Reason
------  --------  --------------  ------------  ------
     1       yes      disruptive         reset  Reset due to single supervisor



Images will be upgraded according to following table:
Module       Image                  Running-Version(pri:alt)           New-Version  Upg-Required
------  ----------  ----------------------------------------  --------------------  ------------
     1      system                                   3.3(5b)                4.2(9)           yes
     1   kickstart                                   3.3(5b)                4.2(9)           yes
     1        bios                          v1.1.0(10/24/03)      v1.1.0(10/24/03)            no
     1      loader                                    1.2(2)                1.2(2)            no

Do you want to continue with the installation (y/n)?  [n] y

Install is in progress, please wait.

Setting boot variables.
[####################] 100% -- SUCCESS

Performing configuration copy.
[####################] 100% -- SUCCESS

Module 1: Refreshing compact flash and upgrading bios/loader/bootrom.
Warning: please do not remove or power off the module at this time.
[####################] 100% -- SUCCESS

Rebooting the switch to finish the upgrade.

Now verify the system is running NX-OS:

MDS1# show ver
Cisco Nexus Operating System (NX-OS) Software
TAC support: http://www.cisco.com/tac
Copyright (c) 2002-2012, Cisco Systems, Inc. All rights reserved.
The copyrights to certain works contained herein are owned by
other third parties and are used and distributed under license.
Some parts of this software are covered under the GNU Public
License. A copy of the license is available at
http://www.gnu.org/licenses/gpl.html.

Software
  BIOS:      version 1.1.0
  loader:    version 1.2(2)
  kickstart: version 4.2(9)
  system:    version 4.2(9)
  BIOS compile time:       10/24/03
  kickstart image file is: bootflash:/m9200-ek9-kickstart-mz.4.2.9.bin
  kickstart compile time:  3/8/2012 22:00:00 [04/17/2012 00:01:47]
  system image file is:    bootflash:/m9200-ek9-mz.4.2.9.bin
  system compile time:     3/8/2012 22:00:00 [04/17/2012 02:46:21]


Hardware
  cisco MDS 9216i (2 Slot) Chassis ("2x1GE IPS, 14x1/2Gbps FC/Supervisor")
  Intel(R) Pentium(R) III CPU  with 965648 kB of memory.
  Processor Board ID JAE1138XC0F

  Device name: MDS1
  bootflash:     250368 kB
Kernel uptime is 0 day(s), 0 hour(s), 7 minute(s), 30 second(s)

Last reset at 275566 usecs after  Wed Aug 13 02:37:44 2014

  Reason: Reset by installer
  System version: 3.3(5b)
  Service:


2 comments

  1. Oh this was F’ing GREAT!!!! We followed this now up and running on nx-os, bought an mds 9216i for 150 BUCKS!
    Thanks a million

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
